How Stretch Film Holds Pallet Loads Together During Transportation |NAIGU

Palletized goods can shift, lean, or become unstable during transportation due to braking, acceleration, turning, vibration, and repeated handling. Stretch film plays an important role in keeping products securely grouped on a pallet and reducing unwanted movement throughout the logistics process.

For manufacturers, warehouses, exporters, and distributors, choosing the right stretch film and applying it correctly can improve pallet stability, reduce product damage, and make transportation more efficient.

What Is Stretch Film?

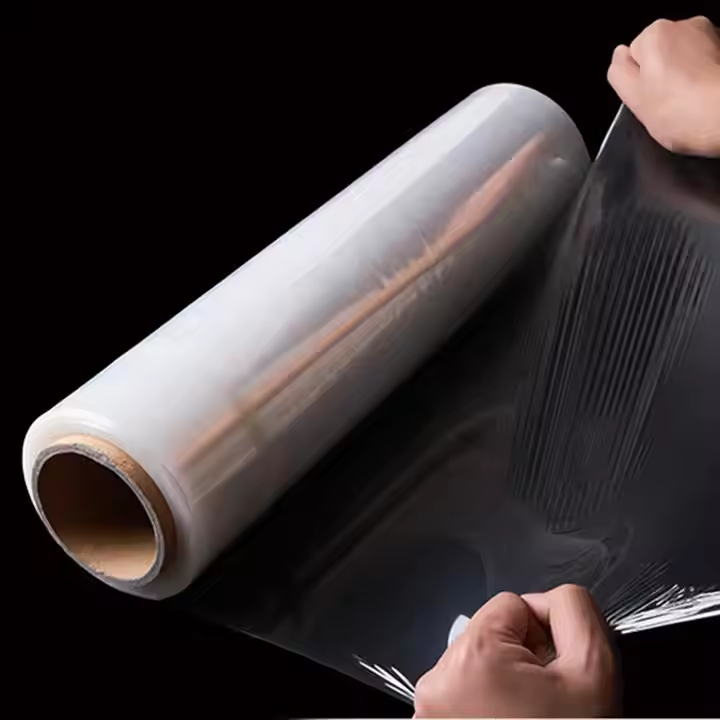

Stretch film is a flexible plastic film, commonly made from polyethylene, that is stretched around products or pallet loads. After being applied, the film creates a holding force that helps keep individual packages together.

Unlike shrink film, stretch film does not normally require heat to create its holding effect. Its performance mainly comes from the film's ability to stretch and maintain tension around the pallet load.

Common applications include:

• Palletized cartons

• Furniture and mattresses

• Industrial components

• Food and beverage products

• E-commerce shipments

• Warehouse goods

• Export cargo

How Does Stretch Film Hold a Pallet Load Together?

The basic principle is containment force.

When stretch film is wrapped around a pallet, the film is stretched under controlled tension. It then attempts to return toward its original dimensions, creating inward pressure around the load.

This pressure helps:

1. Hold individual products together

2. Reduce movement between packages

3. Improve the overall stability of the pallet

4. Keep products aligned during handling

5. Reduce the risk of loads leaning or falling

The film therefore acts as an outer layer that helps transform multiple individual packages into a more stable unit load.

The Role of Film Tension

Film tension is one of the most important factors affecting pallet stability.

If the film is applied with insufficient tension, it may not provide enough containment force to control load movement.

If excessive tension is used, the film can become overstretched or may deform sensitive products.

The ideal tension depends on factors such as:

• Pallet load weight

• Product shape

• Package dimensions

• Film thickness

• Film stretch ratio

• Wrapping equipment

• Transportation conditions

A properly controlled wrapping process provides sufficient holding force without unnecessarily increasing film consumption.

Why Film Stretchability Matters

Stretchability determines how far the film can be extended while maintaining useful holding force.

A film with good stretch performance can cover a pallet efficiently and create stable containment with less material.

For example, pre-stretch film is mechanically stretched before it is applied to the pallet. This can make the wrapping process more consistent and help reduce the amount of film required per pallet.

However, the correct stretch level depends on the film specification and the application. Excessive stretching may reduce film performance if the film is pushed beyond its effective operating range.

Film Memory Helps Maintain Load Stability

Many stretch films have elastic recovery, often referred to as film memory.

After the film has been stretched around a pallet, it attempts to recover toward its original dimensions. This recovery helps maintain pressure on the load after wrapping.

Good film memory can therefore contribute to:

• Consistent containment force

• Improved load stability

• Reduced package movement

• Better performance during transportation

This is particularly important when palletized goods experience vibration or repeated movement during long-distance shipping.

Film Thickness and Pallet Stability

Film thickness also influences performance, but thicker film is not automatically the best choice.

A thicker stretch film may provide higher resistance to puncture and tearing, which can be useful for heavy or sharp-edged loads.

However, advanced stretch films can sometimes achieve good load containment with lower thickness by combining appropriate material properties, stretch performance, and film structure.

Manufacturers should therefore evaluate the complete film specification instead of selecting film based only on thickness.

How Transportation Conditions Affect Stretch Film Performance

A pallet may experience many different forces during transportation.

Acceleration and Braking

Sudden acceleration or braking can cause products to move forward or backward. Stretch film helps limit this movement by maintaining containment around the load.

Turning

During sharp turns, lateral forces can cause cartons or other products to shift sideways. Proper wrapping helps keep the load grouped together.

Vibration

Trucks, trains, and ships can expose pallets to continuous vibration. Over long distances, repeated movement can gradually loosen poorly wrapped loads.

Loading and Unloading

Pallets are often moved several times before reaching their final destination. Strong and stable wrapping helps protect the load during forklift handling and warehouse operations.

Stretch Film for Different Pallet Loads

Different products require different wrapping strategies.

Cartons and Boxes

Uniform carton loads are generally easy to wrap because their surfaces provide relatively consistent contact with the film.

Irregular Products

Products with uneven shapes or gaps may require additional wrapping or a film with suitable stretch and puncture resistance.

Heavy Industrial Products

Heavy products place greater demands on containment force and film durability. Stronger film may be required depending on product shape and handling conditions.

Furniture and Mattresses

Large furniture and mattress products may require wider film, higher stretch performance, or specialized wrapping methods to maintain stable loads during transportation.

Manual vs. Machine Stretch Film Application

Stretch film can be applied manually or with automatic and semi-automatic wrapping equipment.

Manual wrapping is suitable for smaller operations and lower pallet volumes. However, film tension can vary depending on the operator.

Machine wrapping provides more consistent film tension, wrapping speed, and film consumption. This can be particularly valuable for manufacturers and warehouses handling large numbers of pallets.

Automatic wrapping systems can also help standardize the wrapping pattern, reducing variations between different pallet loads.

How to Reduce Stretch Film Consumption

Using more film does not necessarily mean better pallet stability.

A more efficient approach is to optimize:

• Film thickness

• Stretch ratio

• Wrapping tension

• Number of film layers

• Wrapping pattern

• Film width

• Pre-stretch level

By matching these parameters to the actual pallet load, companies can reduce unnecessary film consumption while maintaining sufficient containment force.

This can lower material costs and reduce the amount of packing material used for each shipment.

Common Stretch Film Problems

Several common issues can affect pallet stability.

Film Breakage

Film may break because of excessive tension, sharp product edges, insufficient puncture resistance, or incorrect machine settings.

Loose Wrapping

Insufficient tension or an unsuitable wrapping pattern can result in poor load containment.

Film Slippage

Some loads have smooth surfaces that make it difficult for the film to maintain its position. Film selection and wrapping technique should be adjusted accordingly.

Excessive Film Usage

Using too many layers can increase costs without providing a proportional improvement in stability. Proper testing can help identify the most efficient wrapping specification.

How to Choose the Right Stretch Film

When selecting stretch film for pallet transportation, consider the following factors:

1. Load weight – Heavier loads may require greater containment force.

2. Load shape – Sharp corners and irregular surfaces require good puncture and tear resistance.

3. Pallet dimensions – Film width and roll specifications should match the load.

4. Required stretch ratio – Select film that works effectively with the wrapping method.

5. Application method – Manual, semi-automatic, and automatic wrapping have different requirements.

6. Transportation distance – Long-distance shipments may require more reliable load stability.

7. Storage conditions – Temperature and storage duration can affect film performance.

Conclusion

Stretch film holds pallet loads together primarily by creating containment force through controlled stretching and elastic recovery. When properly selected and applied, it can reduce product movement, improve pallet stability, and protect goods throughout transportation and handling.

For the best results, companies should look beyond film thickness and consider stretchability, tensile strength, puncture resistance, film memory, wrapping tension, and application method.

Choosing the right stretch film can help manufacturers and logistics companies achieve more stable pallets, lower film consumption, and more efficient transportation.
